NSN 2805-00-451-4836
Part Details | PISTON CONNECTING ROD
2805-00-451-4836 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.
Alternate Parts: 387046C91, 2805-00-451-4836, 00-451-4836, 2805004514836, 004514836
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | MAY 17, 1971 | 00-451-4836 | 60266 ( CONNECTING ROD, PISTON ) |
REFERENCE DRAWINGS & PICTURES
I-SECTION TYPE

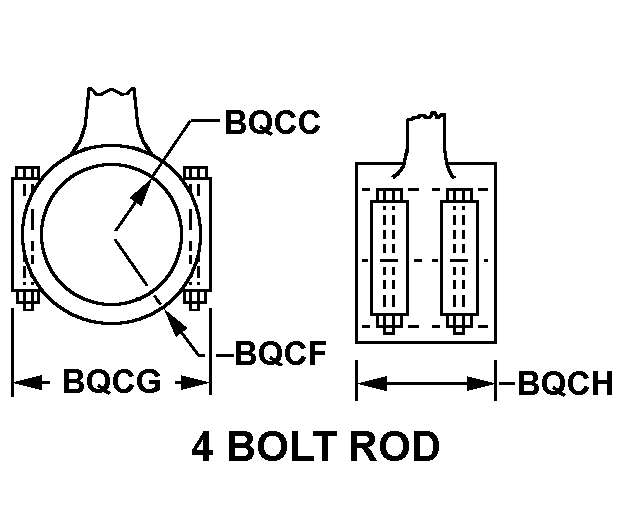

4 BOLT ROD
SMALL ENGINE AND AUTOMOTIVE STANDARD
Cross Reference | NSN 2805-00-451-4836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 387046C91 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 2805-00-451-4836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | N ANY ACCEPTABLE |
| CENTER TO CENTER EFFECTIVE LENGTH | 5.875 INCHES NOMINAL |
| BODY WIDTH AT PISTON CONNECTING END | 1.062 INCHES NOMINAL |
| BODY WIDTH AT SHAFT CONNECTING END | 1.125 INCHES NOMINAL |
| BODY THICKNESS AT PISTON CONNECTING END | 0.633 INCHES NOMINAL |
| BODY THICKNESS AT SHAFT CONNECTING END | 0.688 INCHES NOMINAL |
| PISTON END CONNECTION STYLE | SMALL ENGINE AND AUTOMOTIVE STANDARD |
| END THICKNESS | 1.125 INCHES NOMINAL |
| EDGE RADIUS | 0.625 INCHES NOMINAL |
| END HOLE INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| PISTON CONNECTING END BEARING | NOT INCLUDED |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | NOT INCLUDED |
| PISTON CONNECTING END LUBRICATION METHOD | SPLASH |
| SHAFT CONNECTING END STYLE | 4 BOLT ROD |
| SHAFT CONNECTING END HOLE INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| SHAFT CONNECTING END EDGE RADIUS | 1.531 INCHES NOMINAL |
| SHAFT CONNECTING END WIDTH | 3.312 INCHES NOMINAL |
| SHAFT CONNECTING END THICKNESS | 1.125 INCHES NOMINAL |
| SHAFT CONNECTING END BEARING | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION METHOD | SPLASH |
| CROSS-SECTIONAL SHAPE STYLE | I-SECTION TYPE |
