NSN 2805-00-275-3033
Part Details | PRIMING CUP
2805-00-275-3033 An item consisting of a plug or needle type valve having a cup mounted on top, specifically designed for the introduction of a priming fluid to, or the relief of pressure from, the cylinders of such machinery as internal combustion engines or pumps.
Alternate Parts: 11E, 2805-00-275-3033, 00-275-3033, 2805002753033, 002753033
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-275-3033 | 10233 ( CUP, PRIMING ) |

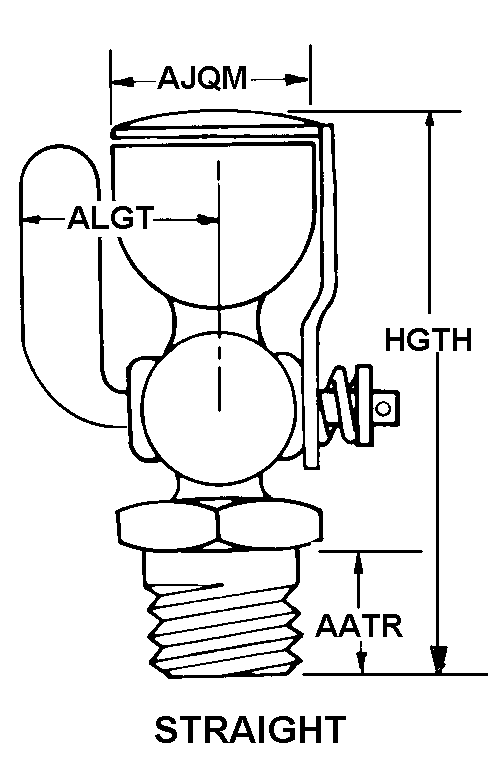

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 2805-00-275-3033
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11E | 30327 | IMPERIAL |
Technical Data | NSN 2805-00-275-3033
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 18 |
