NSN 2805-00-275-3030
Part Details | PRIMING CUP
2805-00-275-3030 An item consisting of a plug or needle type valve having a cup mounted on top, specifically designed for the introduction of a priming fluid to, or the relief of pressure from, the cylinders of such machinery as internal combustion engines or pumps.
Alternate Parts: RG12, 503, RG12, MILC1203, MIL-C-1203, 2805-00-275-3030, 00-275-3030, 2805002753030, 002753030
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-275-3030 | 10233 ( CUP, PRIMING ) |

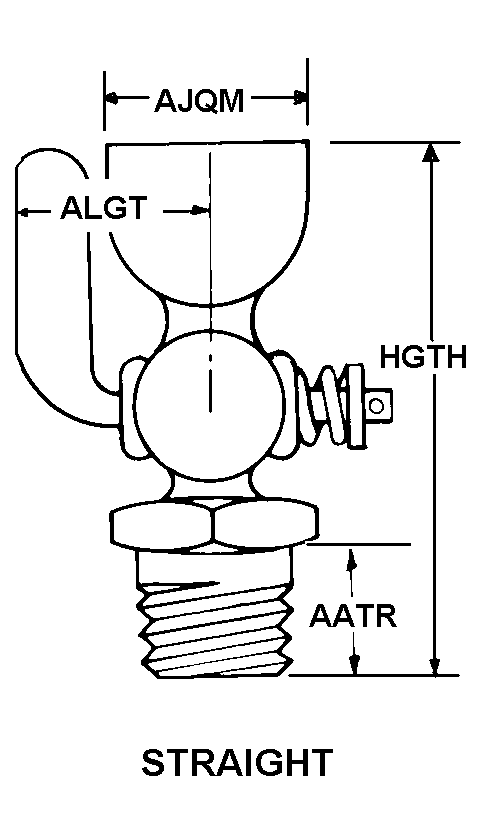

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 2805-00-275-3030
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RG12 | 10152 | BUTLER MANUFACTURING COMPANY INC |
| 503 | 20969 | ESSEX BRASS CORPORATION |
| RG12 | 27996 | HEIL ENVIRONMENTAL INDUSTRIES |
| MIL-C-1203 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 2805-00-275-3030
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| BOWL DIAMETER | 0.625 INCHES NOMINAL |
| HEIGHT | 2.344 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| WIDTH ACROSS FLATS | 0.562 INCHES NOMINAL |
