NSN 2805-00-271-9561
Part Details | PISTON PIN
2805-00-271-9561 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: 63773, 290980, 2805-00-271-9561, 00-271-9561, 2805002719561, 002719561
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-271-9561 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
CHAMFERED ENDS

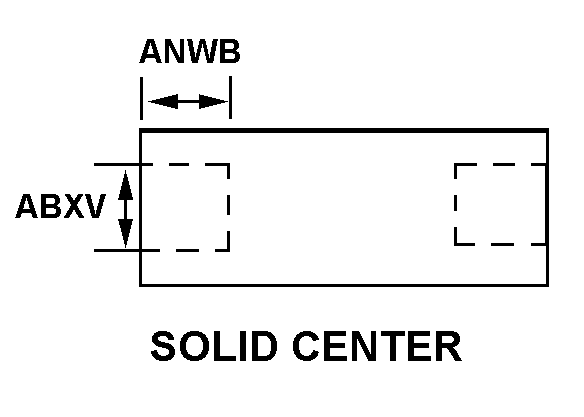

SOLID CENTER
Cross Reference | NSN 2805-00-271-9561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63773 | 08645 | BRIGGS AND STRATTON CORP |
| 290980 | 08645 | BRIGGS AND STRATTON CORP |
Technical Data | NSN 2805-00-271-9561
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | 59.5 NOMINAL ROCKWELL C |
| MATERIAL | STEEL COMP 1022 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AFED STD 66$JGAAISI 1022$JGASAE 1022 2ND MATERIAL RESPONSE |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | A CHAMFERED ENDS |
| OUTSIDE DIAMETER | 0.49000 INCHES NOMINAL |
| BODY LENGTH | 1.6560 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 15.0 |
| BORE STYLE | SOLID CENTER |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| FSC APPLICATION DATA | ENGINE,GASOLINE,NONAIRCRAFT |
