NSN 2805-00-218-1411
Part Details | CYLINDER SLEEVE
2805-00-218-1411 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.
Alternate Parts: 17551, 175-5-1, 266686, 17551, 175-5-1, 266686, 2805-00-218-1411, 00-218-1411, 2805002181411, 002181411
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-218-1411 | 16756 ( CYLINDER SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

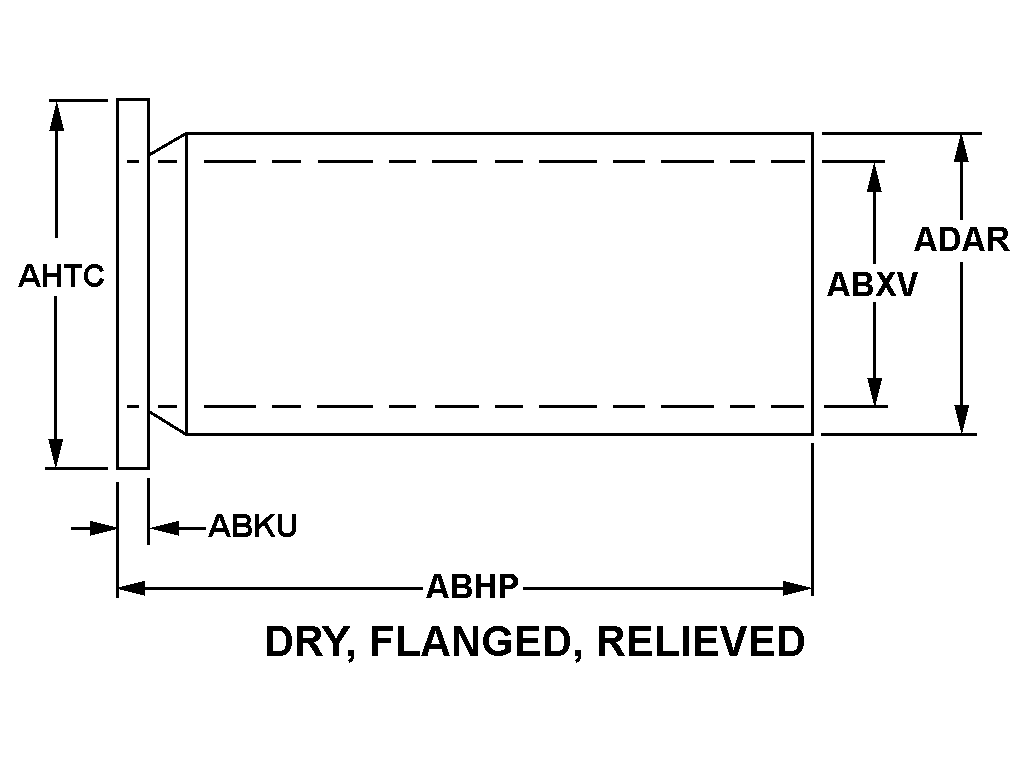

DRY, FLANGED, RELIEVED
Cross Reference | NSN 2805-00-218-1411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 175-5-1 | 71995 | DRESSER INDUSTRIES INCWAUKESHA ENGINE DIV |
| 266686 | 71995 | DRESSER INDUSTRIES INCWAUKESHA ENGINE DIV |
| 175-5-1 | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| 266686 | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
Technical Data | NSN 2805-00-218-1411
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| DESIGN TYPE | DRY |
| STYLE DESIGNATOR | DRY, FLANGED, RELIEVED |
| OVERALL LENGTH | 12.563 INCHES NOMINAL |
| FLANGE THICKNESS | 0.253 INCHES NOMINAL |
| BORE DIAMETER | 5.000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 5.294 INCHES MINIMUM AND 5.299 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 5.493 INCHES MINIMUM AND 5.496 INCHES MAXIMUM |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | INCLUDED |
| CHAMFER LENGTH | 0.094 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 30.0 |
| BOTTOM INSIDE CHAMFER | INCLUDED |
| BOTTOM CHAMFER LENGTH | 0.063 INCHES NOMINAL |
| BOTTOM CHAMFER ANGLE IN DEG | 30.0 |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | NOT INCLUDED |
