NSN 2805-00-215-1652
Part Details | ENGINE POPPET VALVE ROTOR
2805-00-215-1652 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.
Alternate Parts: S820I00310, S820I310, S749I307, 2805-00-215-1652, 00-215-1652, 2805002151652, 002151652
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-215-1652 | 22200 ( ROTOR, ENGINE POPPET VALVE ) |
REFERENCE DRAWINGS & PICTURES

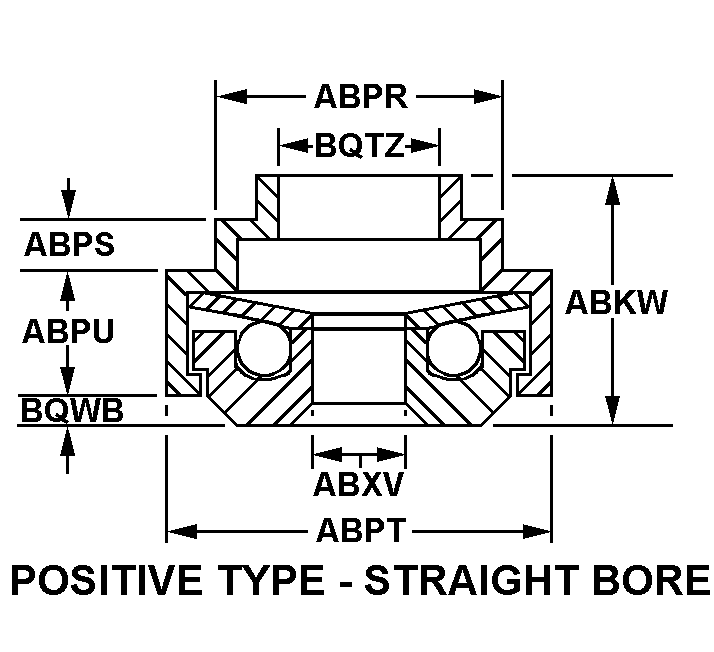

POSITIVE TYPE-STRAIGHT BORE
Cross Reference | NSN 2805-00-215-1652
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S820I00310 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| S820I310 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| S749I307 | 14351 | TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV |
Technical Data | NSN 2805-00-215-1652
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | POSITIVE TYPE-STRAIGHT BORE |
| OVERALL HEIGHT | 0.670 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.432 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.060 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.900 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.343 INCHES NOMINAL |
| BORE DIAMETER | 0.882 INCHES NOMINAL |
| SPRING AND BALL RETAINER INSIDE DIAMETER | 0.895 INCHES NOMINAL |
| DISTANCE FROM END TO NEAREST STEP | 0.086 INCHES NOMINAL |
