NSN 2805-00-200-0065

Part Details | VALVE SPRING RETAINER LOCK

2805-00-200-0065 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.

Alternate Parts: 407837, 22181300, 221813-00, 151838, 6407837, 407837, 22181300, 221813-00, MS139973, MS13997-3, 22HS733, 22HS733, S749I219, S7491219, 2805-00-200-0065, 00-200-0065, 2805002000065, 002000065

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-200-006515883 ( LOCK, VALVE SPRING RETAINER )
REFERENCE DRAWINGS & PICTURES

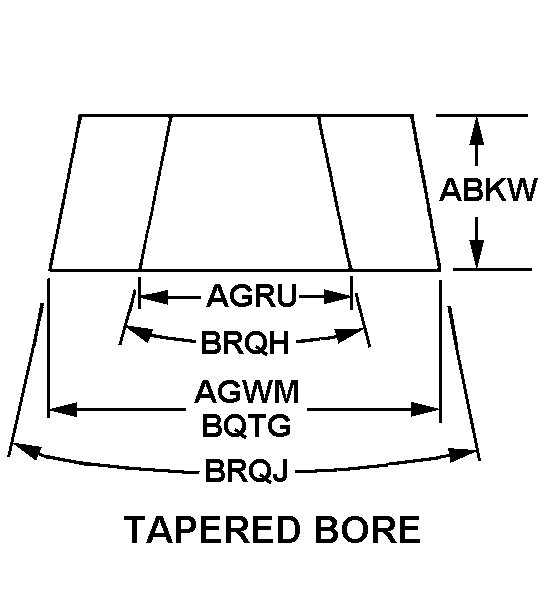

TAPERED BORE

LOCK,VALVE SPRING R | 2805-00-200-0065, 002000065
Cross Reference | NSN 2805-00-200-0065
Part Number Cage Code Manufacturer
4078371ML14BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS
221813-001ML14BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS
15183864104DRESSER, INC.DIV DRESSER WAUKESHA
640783728265HERCULES ENGINE CO INC
40783728265HERCULES ENGINE CO INC
221813-0028265HERCULES ENGINE CO INC
MS13997-396906MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS
22HS73345152OSHKOSH CORPORATION
22HS73375Q65OSHKOSH DEFENSE, LLC
S749I21914351TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV
S749121914351TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV
Technical Data | NSN 2805-00-200-0065
Characteristic Specifications
CASEHARDENING INDICATOR NOT CASEHARDENED
STYLE DESIGNATOR4 TAPERED BORE
CHAMFER LENGTH0.073 INCHES MINIMUM AND 0.088 INCHES MAXIMUM
OVERALL HEIGHT0.124 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
LARGEST OUTSIDE DIAMETER0.677 INCHES MINIMUM AND 0.682 INCHES MAXIMUM
MINIMUM INSIDE DIAMETER0.343 INCHES
LARGEST TOP COUNTERSINK DIAMETER0.416 INCHES MINIMUM AND 0.436 INCHES MAXIMUM
LARGEST BOTTOM COUNTERSINK DIAMETER0.416 INCHES MINIMUM AND 0.436 INCHES MAXIMUM
LARGEST OUTSIDE DIAMETER CHAMFER ANGLE IN DEG45.0
THREAD PROVISION UNTHREADED
FSC APPLICATION DATACYLINDER HEAD ASSEMBLY,GASOLINE ENGINE NONAIRCRAFT
