NSN 2805-00-165-9558

Part Details | ENGINE POPPET VALVE

2805-00-165-9558 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.

Alternate Parts: 977, VE815, VE-815, V1300, V-1300, 3632805820400, 3632805-820400, E173, E-173, 30600, D1122, D-1122, 30600, 5202R, S1617, S-1617, 1161, S1617, S-1617, X1342, X-1342, 9N6505A1, 9N6505A1, 9N6505A, 9N6505A, 9N6505, 9N6505, 8N6505A, 9N6505A1, 9N6505A, 9N6505, 8N6505A, 2111161, V1395, V-1395, V1300, V-1300, VE815, VE-815, V1300, V-1300, S1888, 2805-00-165-9558, 00-165-9558, 2805001659558, 001659558

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-165-955815884 ( VALVE, POPPET, ENGINE )
REFERENCE DRAWINGS & PICTURES

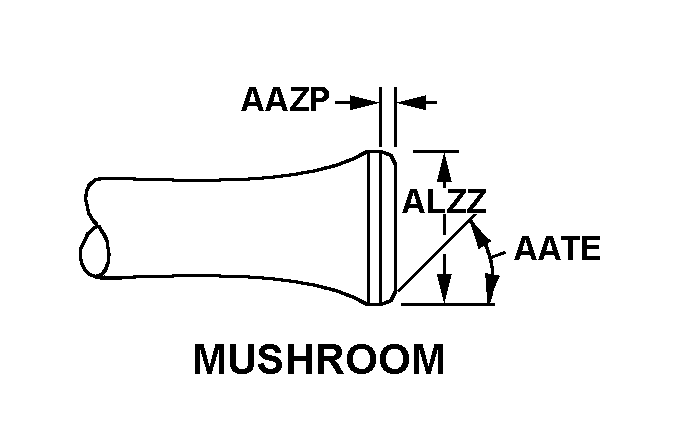

MUSHROOM

VALVE,POPPET,ENGINE | 2805-00-165-9558, 001659558

MUSHROOM

VALVE,POPPET,ENGINE | 2805-00-165-9558, 001659558
Cross Reference | NSN 2805-00-165-9558
Part Number Cage Code Manufacturer
97780825ALLIED MOTOR PARTS CO
VE-81545225BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC.
V-130045225BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC.
3632805-82040081336CHIEF OF ENGINEERSDEPT OF ARMY
E-17315659CLEVITE AN IMPERIAL CLEVITE COPOWDER METAL PRODUCTS DIV
3060054123COLSON CORP THE
D-112277220DANA CORPENGINE PRODUCTS DIV
3060013591DARLING SPECIAL PRODUCTS INC
5202R80900EATON CORP SPRING DIV
S-161759875EATON INDUSTRIAL CORPORATIONDBA ARGO-TECH
116119239ECHLIN INC
S-161792947ERTEL MFG CORP
X-134201212FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT
9N6505A190927FORD MOTOR COFORD PARTS AND SERVICE DIV
9N6505A123040FORD MOTOR COFORD PARTS AND SERVICE DIV
9N6505A90927FORD MOTOR COFORD PARTS AND SERVICE DIV
9N6505A23040FORD MOTOR COFORD PARTS AND SERVICE DIV
9N650590927FORD MOTOR COFORD PARTS AND SERVICE DIV
9N650523040FORD MOTOR COFORD PARTS AND SERVICE DIV
8N6505A23040FORD MOTOR COFORD PARTS AND SERVICE DIV
9N6505A157526FORD MOTOR COMPANY
9N6505A57526FORD MOTOR COMPANY
9N650557526FORD MOTOR COMPANY
8N6505A57526FORD MOTOR COMPANY
21111610B0B1MAHLE CLEVITE INC.
V-139576255MCQUAY-NORRIS INCOEM DIV
V-130076255MCQUAY-NORRIS INCOEM DIV
VE-81553781SPX CORP
V-130053781SPX CORP
S188831033TRW INC TRW INTL TRADE GOVERNMENTSALES DEPT
Technical Data | NSN 2805-00-165-9558
Characteristic Specifications
MATERIAL AND LOCATION STEEL OVERALL
HEAD STYLE MUSHROOM
OUTSIDE DIAMETER1.2812 INCHES NOMINAL
SEAT ANGLE IN DEG45.0
STEM STYLE MUSHROOM
STEM LENGTH4.7656 INCHES NOMINAL
STEM DIAMETER0.3100 INCHES NOMINAL
FSC APPLICATION DATAGASOLINE ENGINE COMPONENTS,NONAIRCRAFT
