Part Details | INTERNAL COMBUSTION ENGINE PISTON

2805-00-110-1968

Alternate Parts: 4512451, ABGA1409P, 2216P, ABGA1409P, 378P, A1409P, 2216P, L1229F, 2805-00-110-1968, 00-110-1968, 2805001101968, 001101968

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28AUG 05, 196800-110-196816509 ( PISTON, INTERNAL COMBUSTION ENGINE )
REFERENCE DRAWINGS & PICTURES

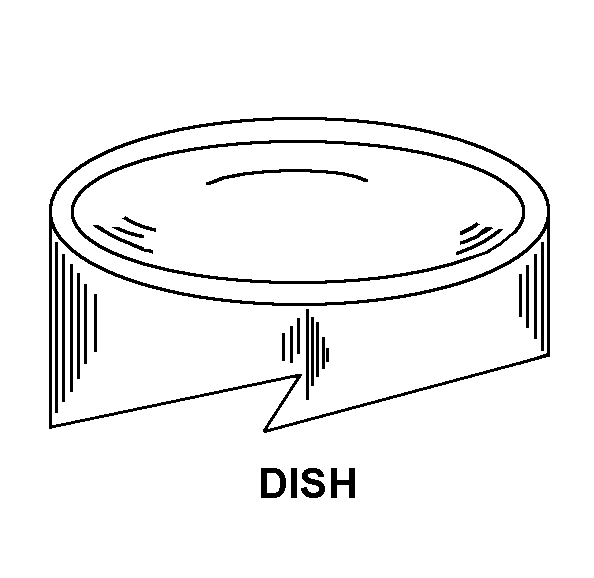

DISH

PISTON,INTERNAL COM | 2805-00-110-1968, 001101968
Cross Reference | NSN 2805-00-110-1968
Part Number Cage Code Manufacturer
45124516N299AGCO CORPPARTS OPN
ABGA1409P52993AR BEE CORP
2216P45225BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC.
ABGA1409P3NNX8BRIGHTON CROMWELL LLC
378P01212FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT
A1409P83087GOULD INCINDUSTRIAL MARKETING DIV
2216P53781SPX CORP
L1229F98349TRW INC TRW STEERING AND SUSPENSIONDIV
Technical Data | NSN 2805-00-110-1968
Characteristic Specifications
MATERIAL ALUMINUM ALLOY
DIAMETER3.437 INCHES NOMINAL
OVERALL HEIGHT3.812 INCHES NOMINAL
SURFACE FINISH FINISHED
FINISHED SIZE DESIGNATION STANDARD
WEIGHT21.0 OUNCES
HEAD STYLE DISH
SKIRT TYPE SOLID
SKIRT BOTTOM CUTAWAY FEATURE NOT INCLUDED
RING GROOVE QUANTITY4
RING GROOVE WIDTH0.1300 INCHES AND 0.1300 INCHES AND 0.1300 INCHES AND 0.1820 INCHES
RING GROOVE DIAMETER3.045 INCHES AND 3.045 INCHES AND 3.045 INCHES AND 3.045 INCHES
OIL PASSAGE TYPE SLOT
CARBON GROOVE NOT INCLUDED
OIL GROOVE NOT INCLUDED
DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP2.095 INCHES NOMINAL
PIN HOLE BUSHING NOT INCLUDED
PINHOLE DIAMETER0.9900 INCHES NOMINAL
DISTANCE BETWEEN PIN BOSSES1.438 INCHES NOMINAL
RETAINING RING GROOVE INCLUDED
PIN NOT INCLUDED
PIN TYPE FOR WHICH DESIGNED FLOATING
RING NOT INCLUDED
