NSN 2805-00-073-3021
Part Details | VALVE STEM GUIDE
2805-00-073-3021 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.
Alternate Parts: 377089C, 13206E0675, 377089C, ERAA300, 2805-00-073-3021, 00-073-3021, 2805000733021, 000733021
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-073-3021 | 32562 ( GUIDE, VALVE STEM ) |

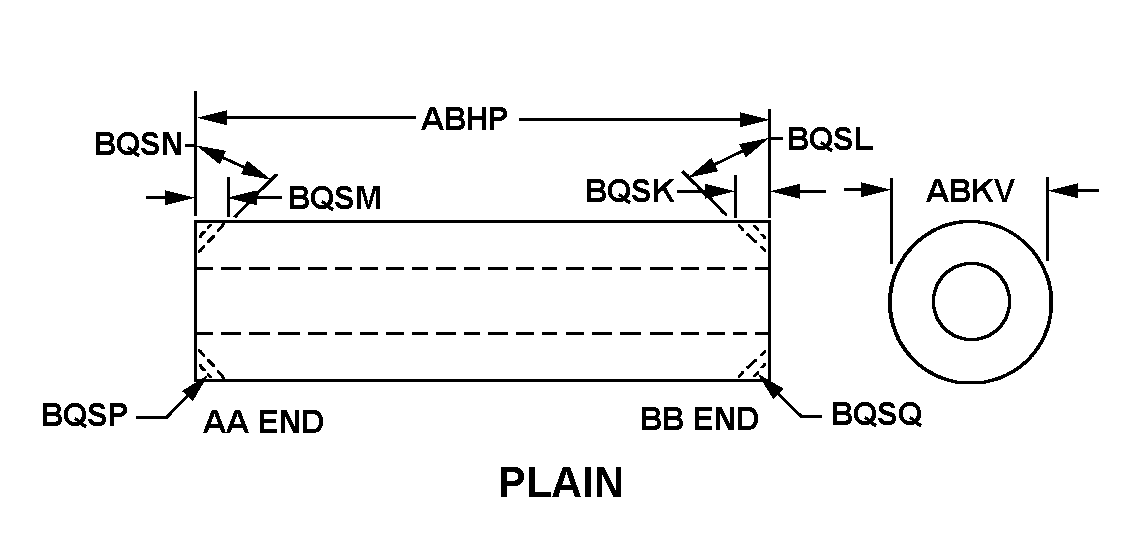

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 2805-00-073-3021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 377089C | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 13206E0675 | 97403 | CECOM LR CENTER |
| 377089C | 28265 | HERCULES ENGINE CO INC |
| ERAA300 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
Technical Data | NSN 2805-00-073-3021
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 2 PLAIN |
| SHOULDER DIAMETER | 0.817 INCHES MINIMUM AND 0.827 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.063 INCHES NOMINAL |
| OVERALL LENGTH | 1.938 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.120 INCHES MINIMUM AND 1.130 INCHES MAXIMUM |
| SHOULDER HEIGHT | 0.063 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.125 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| AA END DIAMETER | 0.531 INCHES NOMINAL |
| BB END SHANK DIAMETER | 0.500 INCHES MINIMUM AND 0.501 INCHES MAXIMUM |
| BB END RADIUS | 0.250 INCHES NOMINAL |
| SHOULDER FIRST FILLET RADIUS | 0.094 INCHES NOMINAL |
| SHOULDER SECOND FILLET RADIUS | 0.063 INCHES NOMINAL |
| FILLET STEP RADIUS | 0.015 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
| LENGTH FROM AA END TO LARGEST DIAMETER FACE | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| BORE DIAMETER | 0.3270 INCHES MINIMUM AND 0.3290 INCHES MAXIMUM |
| BORE COUNTERSINK | NOT INCLUDED |
| MATERIAL | COPPER ALLOY |
| BORE COUNTERBORE | NOT INCLUDED |
| FSC APPLICATION DATA | ENGINE GASOLINE,NONAIRCRAFT |
