NSN 2805-00-054-2350
Part Details | PISTON CONNECTING ROD
2805-00-054-2350 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.
Alternate Parts: DA73C4S1, DA73CS1, DA83AS1, DA80AS1, 2805-00-054-2350, 00-054-2350, 2805000542350, 000542350
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | MAY 23, 1967 | 00-054-2350 | 60266 ( CONNECTING ROD, PISTON ) |
REFERENCE DRAWINGS & PICTURES
I-SECTION TYPE

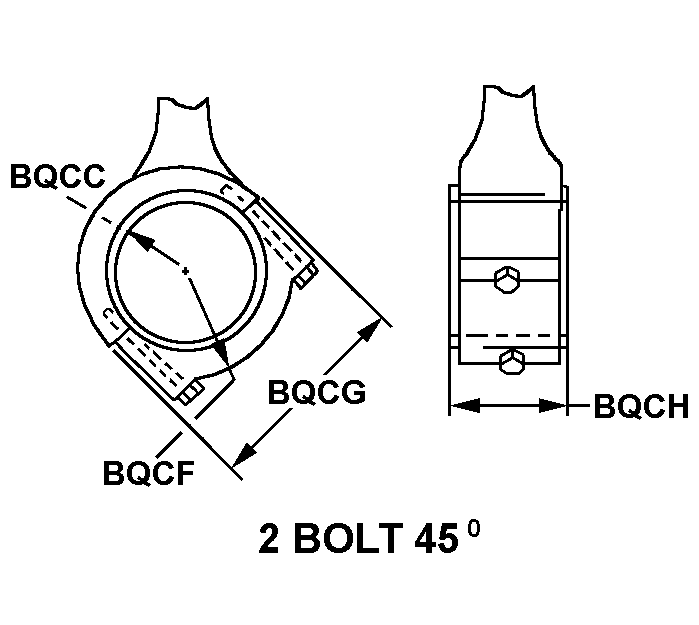

2 BOLT 45 DEGREES
SMALL ENGINE AND AUTOMOTIVE STANDARD
Cross Reference | NSN 2805-00-054-2350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DA73C4S1 | 66289 | WISCONSIN MOTORS LLC |
| DA73CS1 | 66289 | WISCONSIN MOTORS LLC |
| DA83AS1 | 66289 | WISCONSIN MOTORS LLC |
| DA80AS1 | 66289 | WISCONSIN MOTORS LLC |
Technical Data | NSN 2805-00-054-2350
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| FABRICATION METHOD | N ANY ACCEPTABLE |
| CENTER TO CENTER EFFECTIVE LENGTH | 4.625 INCHES NOMINAL |
| BODY WIDTH AT PISTON CONNECTING END | 0.800 INCHES NOMINAL |
| BODY WIDTH AT SHAFT CONNECTING END | 1.000 INCHES NOMINAL |
| BODY THICKNESS AT PISTON CONNECTING END | 0.630 INCHES NOMINAL |
| BODY THICKNESS AT SHAFT CONNECTING END | 0.700 INCHES NOMINAL |
| PISTON END CONNECTION STYLE | SMALL ENGINE AND AUTOMOTIVE STANDARD |
| END THICKNESS | 0.880 INCHES NOMINAL |
| EDGE RADIUS | 0.625 INCHES NOMINAL |
| END HOLE INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| PISTON CONNECTING END BEARING | NOT INCLUDED |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| PISTON CONNECTING END LUBRICATION METHOD | SPLASH |
| SHAFT CONNECTING END STYLE | 2 BOLT 45 DEGREES |
| SHAFT CONNECTING END HOLE INSIDE DIAMETER | 1.375 INCHES NOMINAL |
| SHAFT CONNECTING END EDGE RADIUS | 0.875 INCHES NOMINAL |
| SHAFT CONNECTING END WIDTH | 2.406 INCHES NOMINAL |
| SHAFT CONNECTING END THICKNESS | 1.175 INCHES NOMINAL |
| SHAFT CONNECTING END BEARING | INCLUDED |
| SHAFT CONNECTING END BEARING REPLACEABILITY | NONREPLACEABLE |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| SHAFT CONNECTING END LUBRICATION METHOD | SPLASH |
| CROSS-SECTIONAL SHAPE STYLE | I-SECTION TYPE |
