NSN 2805-00-033-6064
Part Details | PISTON PIN
2805-00-033-6064 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: M600A203STD, M600A203, 2805-00-033-6064, 00-033-6064, 2805000336064, 000336064
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-033-6064 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ENDS

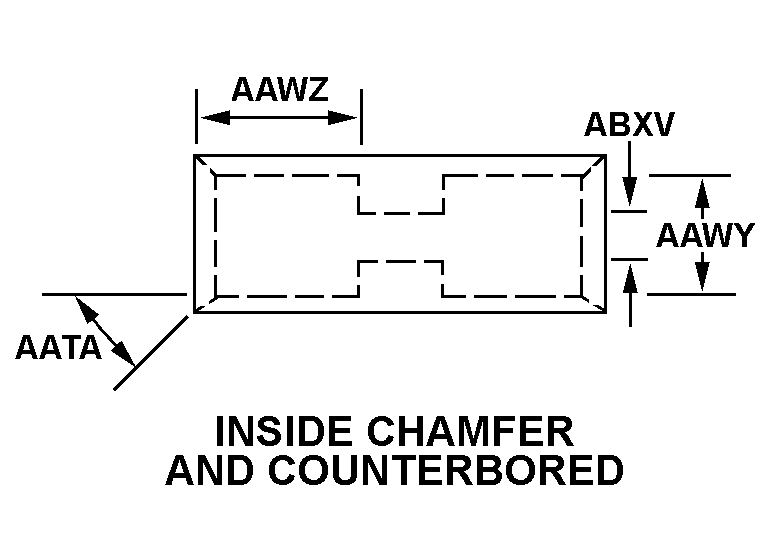

INSIDE CHAMFER AND COUNTERBORED
Cross Reference | NSN 2805-00-033-6064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M600A203STD | 14351 | TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV |
| M600A203 | 14351 | TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV |
Technical Data | NSN 2805-00-033-6064
| Characteristic | Specifications |
|---|---|
| METALLIC HARDNESS RATING | 79.0 MINIMUM ROCKWELL A AND 82.3 MAXIMUM ROCKWELL A |
| MATERIAL | STEEL COMP 1019 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AFED STD 66$JGAAISI 1019$JGASAE 1019 2ND MATERIAL RESPONSE |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 5A PLAIN ENDS |
| RADIUS | 0.031 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.10910 INCHES MINIMUM AND 1.10930 INCHES MAXIMUM |
| BODY LENGTH | 3.4250 INCHES MINIMUM AND 3.4400 INCHES MAXIMUM |
| BORE STYLE | INSIDE CHAMFER AND COUNTERBORED |
| COUNTERBORE DIAMETER | 0.813 INCHES NOMINAL |
| COUNTERBORE DEPTH | 1.531 INCHES NOMINAL |
| BORE DIAMETER | 0.7500 INCHES NOMINAL |
| COUNTERSINK ANGLE IN DEG | 45.0 |
| FSC APPLICATION DATA | ENGINE,GASOLINE,NONAIRCRAFT |
