NSN 2640-01-406-7120
Part Details | PNEUMATIC VALVE CAP
2640-01-406-7120 A pneumatic fitting primarily designed to fasten on or into another pneumatic fitting to prevent the entrance of foreign matter into the valve stem. It may incorporate features for sealing, depressing, or removal of the valve core. It may be threaded on one or both ends. Excludes CAP, PROTECTIVE, DUST AND MOISTURE SEAL.
Alternate Parts: 1155, 2640-01-406-7120, 01-406-7120, 2640014067120, 014067120
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | JAN 10, 1995 | 01-406-7120 | 05414 ( CAP, PNEUMATIC VALVE ) |
REFERENCE DRAWINGS & PICTURES

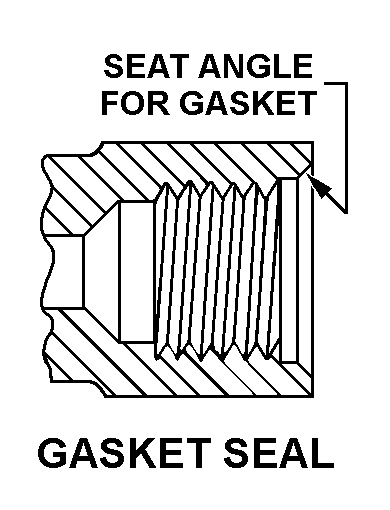

GASKET SEAL
CAP, VALVE SEALING AND DEFLATING
Cross Reference | NSN 2640-01-406-7120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1155 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONALINC |
Technical Data | NSN 2640-01-406-7120
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 5 CAP, VALVE SEALING AND DEFLATING |
| CONNECTION STYLE | GASKET SEAL |
| SPECIAL FEATURES | CAP LENGTH 14.2 MM; CAP DIA 11.2 MM |
| END ITEM IDENTIFICATION | TRUCK 1.5 TONNE 4 X 4; LIGHT SUPPORT VEHICLE WHEELED; SCHRADER AUTOMOTIVE INC |
