NSN 2640-00-859-0381
Part Details | PNEUMATIC TIRE VALVE STEM WASHER
2640-00-859-0381 A round or bridge type washer used to maintain alignment, and to make an air tight connection of valve stem to the tube.
Alternate Parts: RW11, 2640-00-859-0381, 00-859-0381, 2640008590381, 008590381
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | JAN 01, 1962 | 00-859-0381 | 07443 ( VALVE STEM WASHER, PNEUMATIC TIRE ) |

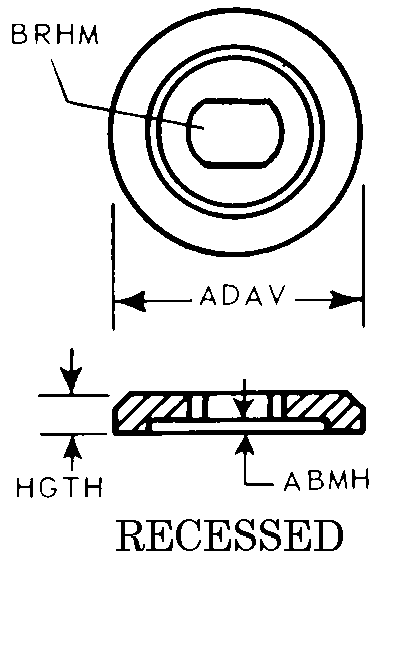

REFERENCE DRAWINGS & PICTURES
RECESSED
Cross Reference | NSN 2640-00-859-0381
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RW11 | 79934 | THE TIRE & RIM ASSOCIATION INC |
Technical Data | NSN 2640-00-859-0381
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RECESSED |
| RECESS DEPTH | 0.050 INCHES NOMINAL |
| OVERALL DIAMETER | 0.906 INCHES NOMINAL |
| VALVE SIZE FOR WHICH DESIGNED | 0.482-26 |
| HEIGHT | 1.125 INCHES NOMINAL |
| UNIT PACKAGE QUANTITY | 10 |
| UNIT PACKAGE TYPE | BOX |
