NSN 2640-00-242-7617
Part Details | TIRE VALVE EXTENSION
2640-00-242-7617 A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length.
Alternate Parts: 171, 339, 442, 171, 7744, 7744, 11739009, 7744, EXT7, EXT-7, 11739009, 2640-00-242-7617, 00-242-7617, 2640002427617, 002427617
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | JAN 01, 1963 | 00-242-7617 | 07415 ( VALVE EXTENSION, TIRE ) |
REFERENCE DRAWINGS & PICTURES

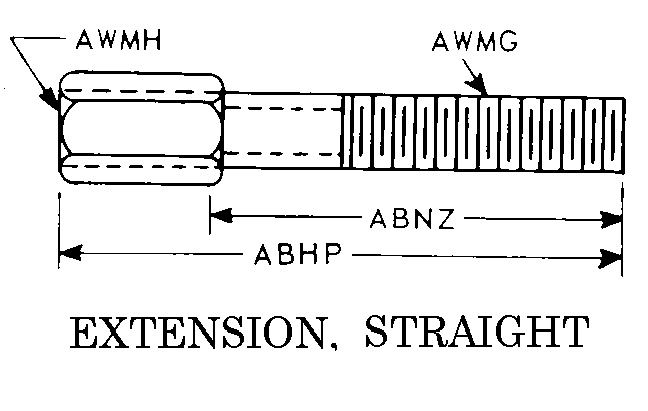

EXTENSION, STRAIGHT
Cross Reference | NSN 2640-00-242-7617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 171 | 64650 | BRIDGEPORT-PIEDMONT MFG CODIV OF BRIDGE PRODUCTS INC |
| 339 | 17875 | EATON CORPORATIONDBA AIR CONTROLS DIVISION DIV AIR |
| 442 | 94894 | MILTON INDUSTRIES, INC. |
| 171 | 08588 | NATIONAL DISTILLERS AND CHEMICALCORP BRIDGEPORT BRASS CO DIV |
| 7744 | 08885 | SCHRADER J CO |
| 7744 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONALINC |
| 11739009 | 27783 | SCHRADER-BRIDGEPORT INTERNATIONALINC |
| 7744 | 53477 | SCOVILL INCSCHRADER BELLOWS DIV |
| EXT-7 | 79934 | THE TIRE & RIM ASSOCIATION INC |
| 11739009 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 2640-00-242-7617
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | RIGID-METAL |
| STYLE DESIGNATOR | EXTENSION, STRAIGHT |
| ITEM TYPE CATEGORY | ACCESSORY |
| ACCESSORY TYPE | VALVE |
| TIRE VALVE DESIGNATION | TR-EXT-7 |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| EFFECTIVE LENGTH | 1.000 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 0.302-32 |
| INTERNAL THREAD SIZE | 0.311-32 |
| VALVE CORE ACCOMMODATION | NOT INCLUDED |
| BORE SIZE DESIGNATION | STANDARD |
| FURNISHED ITEMS AND QUANTITY | CAP VALVE-1,CORE EXTENSION-1 |
