NSN 2640-00-174-1785
Part Details | TIRE VALVE EXTENSION
2640-00-174-1785 A metal, or a combination metal and rubber tube, designed to be fitted to a pneumatic tire valve stem, to increase overall length.
Alternate Parts: 2622, 2622, 520904, 2640-00-174-1785, 00-174-1785, 2640001741785, 001741785
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 26 | JAN 01, 1963 | 00-174-1785 | 07415 ( VALVE EXTENSION, TIRE ) |
REFERENCE DRAWINGS & PICTURES

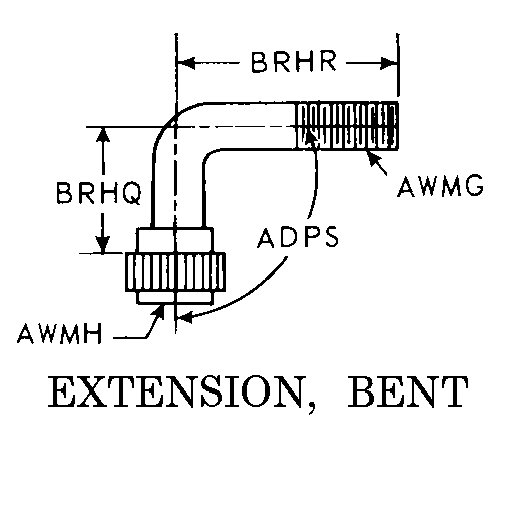

EXTENSION, BENT
Cross Reference | NSN 2640-00-174-1785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2622 | 53705 | SCOVILL INC |
| 2622 | 53477 | SCOVILL INCSCHRADER BELLOWS DIV |
| 520904 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2640-00-174-1785
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | RIGID-METAL |
| STYLE DESIGNATOR | EXTENSION, BENT |
| INSIDE ANGLE IN DEG | 90.0 |
| EXTERNAL THREAD SIZE | 0.302-32 |
| INTERNAL THREAD SIZE | 0.302-32 |
| EFFECTIVE HEIGHT | 0.500 INCHES NOMINAL |
| DISTANCE FROM CENTER TO END | 3.750 INCHES NOMINAL |
| VALVE CORE ACCOMMODATION | NOT INCLUDED |
| BORE SIZE DESIGNATION | STANDARD |
