NSN 2540-00-495-0216
Part Details | DOOR WEDGE RECEPTACLE
2540-00-495-0216 An item having two blocks, shoes or a V-shaped grooved member, attached to a metal frame. It is designed to be mounted on a vehicle door or door post and to receive a WEDGE, DOOR DOVETAIL. It is used to hold the door rigidly in place when closed. Excludes items having an integral catch.
Alternate Parts: 307013C93, 2540-00-495-0216, 00-495-0216, 2540004950216, 004950216
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JUN 18, 1971 | 00-495-0216 | 20246 ( RECEPTACLE, DOOR WEDGE ) |

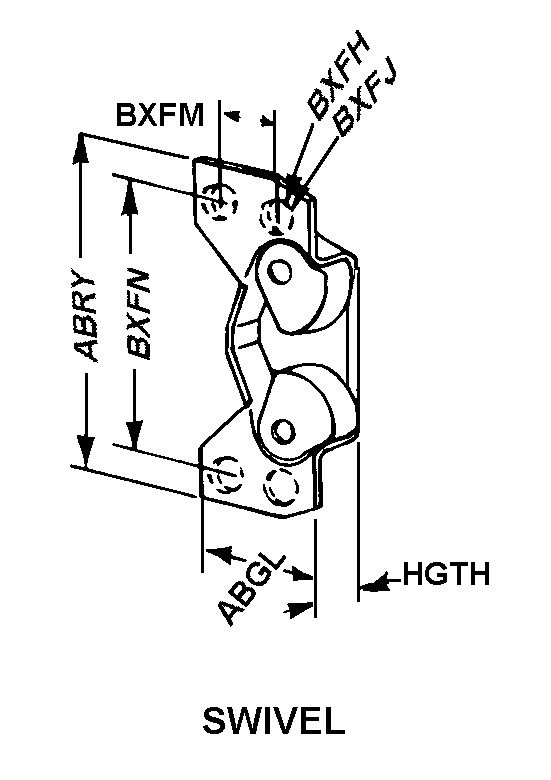

REFERENCE DRAWINGS & PICTURES
SWIVEL
Cross Reference | NSN 2540-00-495-0216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 307013C93 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
Technical Data | NSN 2540-00-495-0216
| Characteristic | Specifications |
|---|---|
| FRAME MATERIAL | METAL |
| BLOCK MATERIAL | METAL |
| FRAME SURFACE TREATMENT | ANY ACCEPTABLE |
| BLOCK SURFACE TREATMENT | ANY ACCEPTABLE |
| STYLE DESIGNATOR | SWIVEL |
| WIDTH | 2.125 INCHES NOMINAL |
| LENGTH | 3.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN STRAIGHT END MOUNTING HOLES ALONG WIDTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN STRAIGHT END MOUNTING HOLES ALONG LENGTH | 3.250 INCHES NOMINAL |
| HEIGHT | 0.750 INCHES NOMINAL |
| STRAIGHT END MOUNTING HOLE QUANTITY | 3 |
| WELDING DIMPLES | NOT INCLUDED |
