NSN 2540-00-294-4246
Part Details | DOOR HANDLE
2540-00-294-4246 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.
Alternate Parts: 812E6336, 2540-00-294-4246, 00-294-4246, 2540002944246, 002944246
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-294-4246 | 18073 ( HANDLE, DOOR ) |

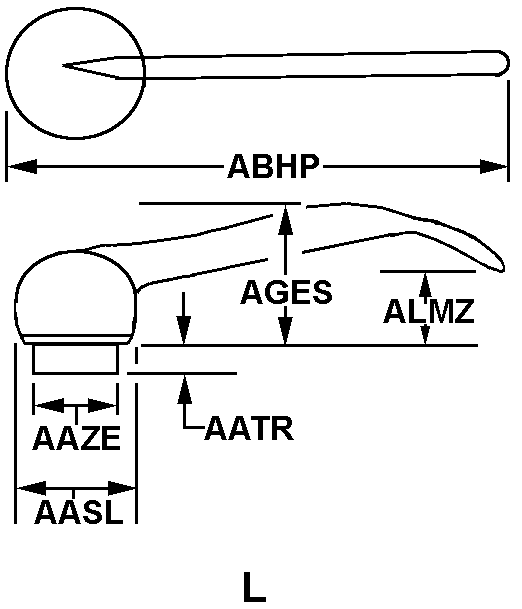

REFERENCE DRAWINGS & PICTURES
L
Cross Reference | NSN 2540-00-294-4246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 812E6336 | 02413 | KERSEY / AMERICAN LAFRANCEA DIV OF FIGGIE INTERNATIONAL INC |
Technical Data | NSN 2540-00-294-4246
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 6 L |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| HANDLE HEIGHT | 2.125 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.750 INCHES NOMINAL |
| HOLE DIAMETER | 0.187 INCHES NOMINAL |
| PLATE WIDTH | 1.000 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.500 INCHES NOMINAL |
| PLATE LENGTH | 2.250 INCHES NOMINAL |
| HEIGHT | 0.562 INCHES NOMINAL |
| FEATURES PROVIDED | ESCUTCHEON PLATE FIXED |
