Part Details | PINTLE HOOK LATCH
2540-00-287-8224 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Alternate Parts: 245664, 152685, 2847G163, BB27536, 800921, 2018584, 113, T1032, T103-2, B12694, 221SW13, 2847G163, 16B7359, 110292H, 110292H, 70048290, 48290, 048290, 0048290, 669733, 2018584, 110671, 6012694, 48290, 399957, 396110, 2540-00-287-8224, 00-287-8224, 2540002878224, 002878224
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-287-8224 | 11401 ( LATCH, PINTLE HOOK ) |
REFERENCE DRAWINGS & PICTURES

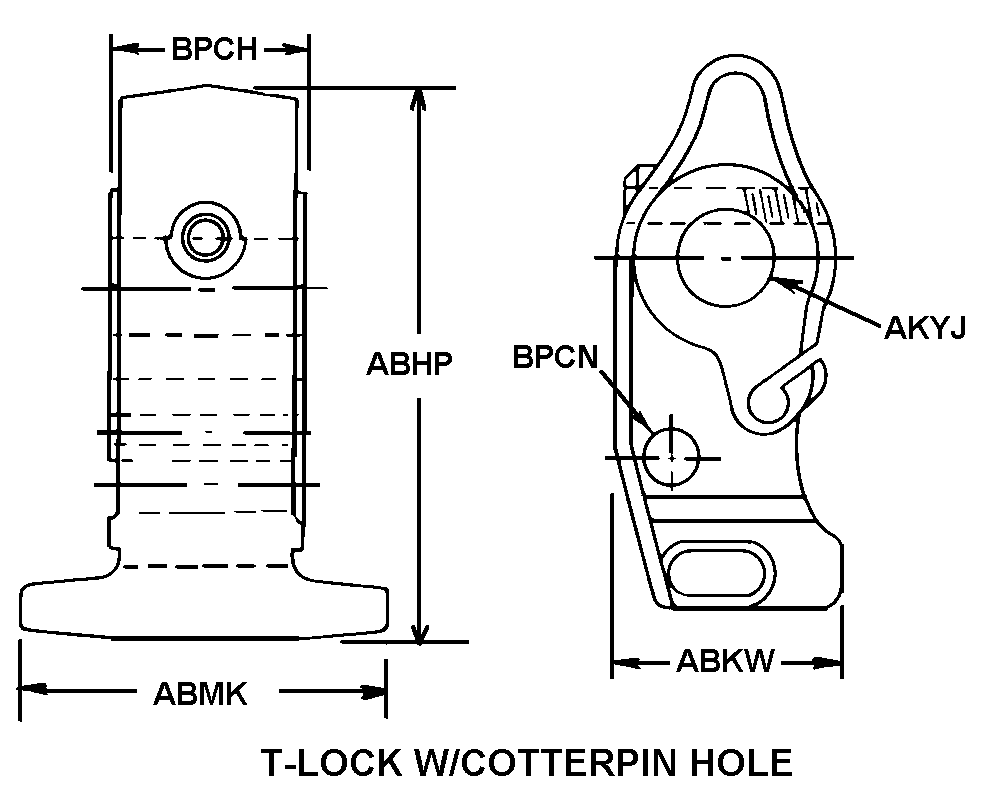

T-LOCK W/COTTERPIN HOLE
Cross Reference | NSN 2540-00-287-8224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 245664 | 08683 | BROCKWAY MOTOR TRUCKSDIV OF MACK TRUCKS INC |
| 152685 | 08683 | BROCKWAY MOTOR TRUCKSDIV OF MACK TRUCKS INC |
| 2847G163 | 72260 | CORBITT CO INC |
| BB27536 | 56442 | DIAMOND REO TRUCK CO |
| 800921 | 23705 | FRUEHAUF CORP |
| 2018584 | 24617 | GENERAL MOTORS CORP |
| 113 | 74410 | HOLLAND USA INC |
| T103-2 | 80837 | KYSOR/WESTRAN CORPAUSTIN TRAILER DIV |
| B12694 | 76040 | MACK TRUCKS INCPARTS OPN |
| 221SW13 | 76040 | MACK TRUCKS INCPARTS OPN |
| 2847G163 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 16B7359 | 95201 | NAPCO INTERNATIONAL LLC |
| 110292H | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 110292H | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 70048290 | 89926 | NEW HOLLAND CONSTRUCTION |
| 48290 | 89926 | NEW HOLLAND CONSTRUCTION |
| 048290 | 89926 | NEW HOLLAND CONSTRUCTION |
| 0048290 | 89926 | NEW HOLLAND CONSTRUCTION |
| 669733 | 58275 | SASCO INC CANADIAN DIV |
| 2018584 | 97907 | TEREX CORP |
| 110671 | 97907 | TEREX CORP |
| 6012694 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 48290 | 62508 | UTILITY TRAILER MFG CO |
| 399957 | 65282 | WHITE MOTOR CORP |
| 396110 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 2540-00-287-8224
| Characteristic | Specifications |
|---|---|
| PINTLE TYPE FOR WHICH DESIGNED | MANUAL |
| STYLE DESIGNATOR | T-LOCK W/COTTERPIN HOLE |
| OVERALL LENGTH | 4.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.880 INCHES MINIMUM AND 0.883 INCHES MAXIMUM |
| WIDTH AT PIVOT PIN HOLE | 1.290 INCHES MINIMUM AND 1.300 INCHES MAXIMUM |
| LOCKING PIN HOLE DIAMETER | 0.281 INCHES NOMINAL |
| THREADED PIVOT PIN LOCKING HOLE | INCLUDED |
| THREAD SIZE | 5/16-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD LENGTH | 0.375 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
