NSN 2540-00-054-7702
Part Details | RING DRAWBAR COUPLER
2540-00-054-7702 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Alternate Parts: MS513371, MS51337-1, A524641, A52464-1, 2540-00-054-7702, 00-054-7702, 2540000547702, 000547702
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1961 | 00-054-7702 | 19449 ( COUPLER, DRAWBAR, RING ) |
REFERENCE DRAWINGS & PICTURES

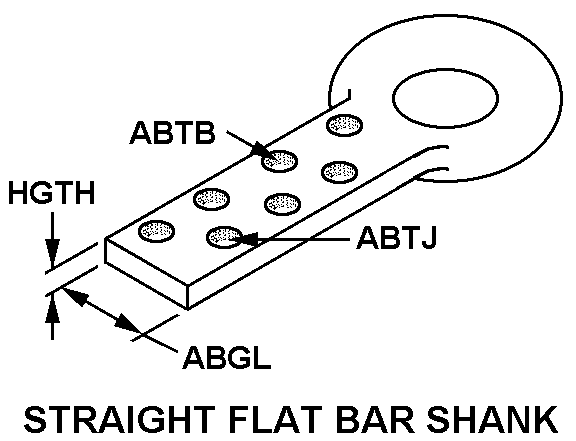

STRAIGHT FLAT BAR SHANK
Cross Reference | NSN 2540-00-054-7702
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51337-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| A52464-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 2540-00-054-7702
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 2 STRAIGHT FLAT BAR SHANK |
| SHANK LENGTH | 8.313 INCHES NOMINAL |
| OVERALL LENGTH | 17.000 INCHES NOMINAL |
| RING INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| RING OUTSIDE DIAMETER | 6.250 INCHES NOMINAL |
| SHANK END THREAD PROVISION | THREADED |
| THREAD SIZE | 1-3/4 IN.-12 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.250 INCHES |
| COTTER PIN HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SHANK END KEYWAY | NOT PROVIDED |
| PAINTED FEATURE | NOT INCLUDED |
