NSN 2530-00-118-5402
Part Details | PNEUMATIC TIRE WHEEL RIM
2530-00-118-5402 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).
Alternate Parts: 2476263, 2476263, 2530-00-118-5402, 00-118-5402, 2530001185402, 001185402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | OCT 11, 1968 | 00-118-5402 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

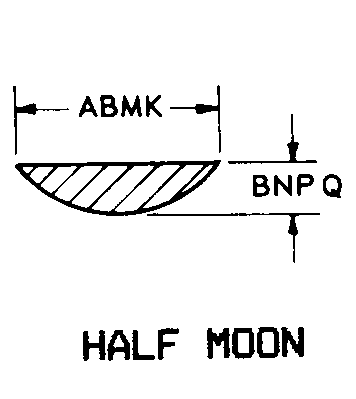

HALF MOON
Cross Reference | NSN 2530-00-118-5402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2476263 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 2476263 | 23862 | MILITARY VEHICLES OPNGENERAL MOTORS TRUCK AND BUS GROUP |
Technical Data | NSN 2530-00-118-5402
| Characteristic | Specifications |
|---|---|
| TIRE DIAMETER FOR WHICH DESIGNED | 20.000 INCHES |
| STYLE DESIGNATOR | 2 HALF MOON |
| GROOVE DEPTH | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 7.000 INCHES NOMINAL |
| EFFECTIVE WIDTH | 6.000 INCHES NOMINAL |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
