NSN 2530-00-063-1361
Part Details | PNEUMATIC TIRE WHEEL
2530-00-063-1361 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: MS243225, MS24322-5, 6419M, 2530-00-063-1361, 00-063-1361, 2530000631361, 000631361
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-063-1361 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES
FLAT

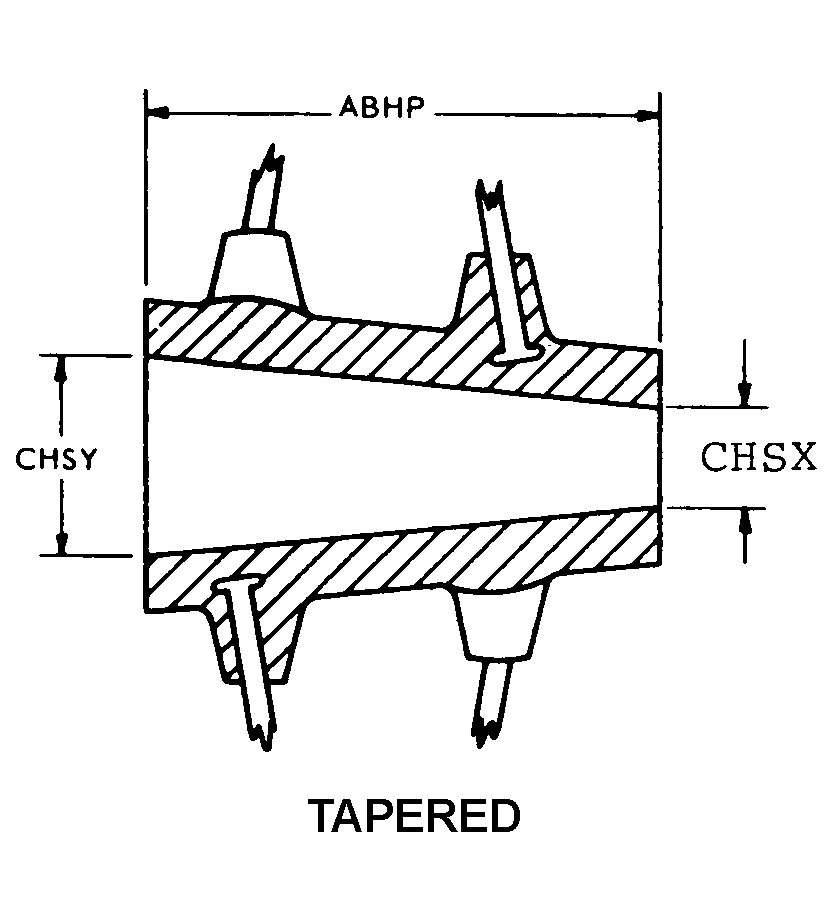

TAPERED
Cross Reference | NSN 2530-00-063-1361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS24322-5 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 6419M | 52793 | SAGINAW PRODUCTS CORPORATIONDBA CIGNYS |
Technical Data | NSN 2530-00-063-1361
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 9.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | DOUBLE |
| LIGHTENING HOLE | NOT INCLUDED |
| DESIGN TYPE | DIVIDED WHEEL |
| RIM STYLE | 5 FLAT |
| GROOVE DEPTH | 0.955 INCHES NOMINAL |
| VALVE HOLE SHAPE | ROUND |
| HOLE LOCATION | 9/16 IN. FROM CENTERLINE OF WHEEL |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | INCLUDED |
| HUB STYLE | TAPERED |
| AXLE RECESS MAJOR DIAMETER | 2.625 INCHES MINIMUM AND 2.656 INCHES MAXIMUM |
| AXLE RECESS MINOR DIAMETER | 2.062 INCHES MINIMUM AND 2.094 INCHES MAXIMUM |
| LUBRICATION FITTING | NOT PROVIDED |
| BEARINGS | INCLUDED |
| END ITEM IDENTIFICATION | GRUMMAN AIRCRAFT,MODEL A10 |
