NSN 2520-00-179-9946
Part Details | VEHICULAR SHIFTER FORK
2520-00-179-9946 An item having two or more prongs which may have transverse hole(s), slot(s), dowel pin(s), pad(s), in or on the end of each prong, to provide a means to accomplish the engagement or disengagement of gear(s), shaft(s), clutch, or the like. The opposite end has facilities for a shaft, lever, or the like. This item is designed to be used on vehicular applications such as automobiles, tanks, construction equipment, and the like.
Alternate Parts: 2B1866, 2520-00-179-9946, 00-179-9946, 2520001799946, 001799946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1961 | 00-179-9946 | 52051 ( SHIFTER FORK, VEHICULAR ) |
REFERENCE DRAWINGS & PICTURES

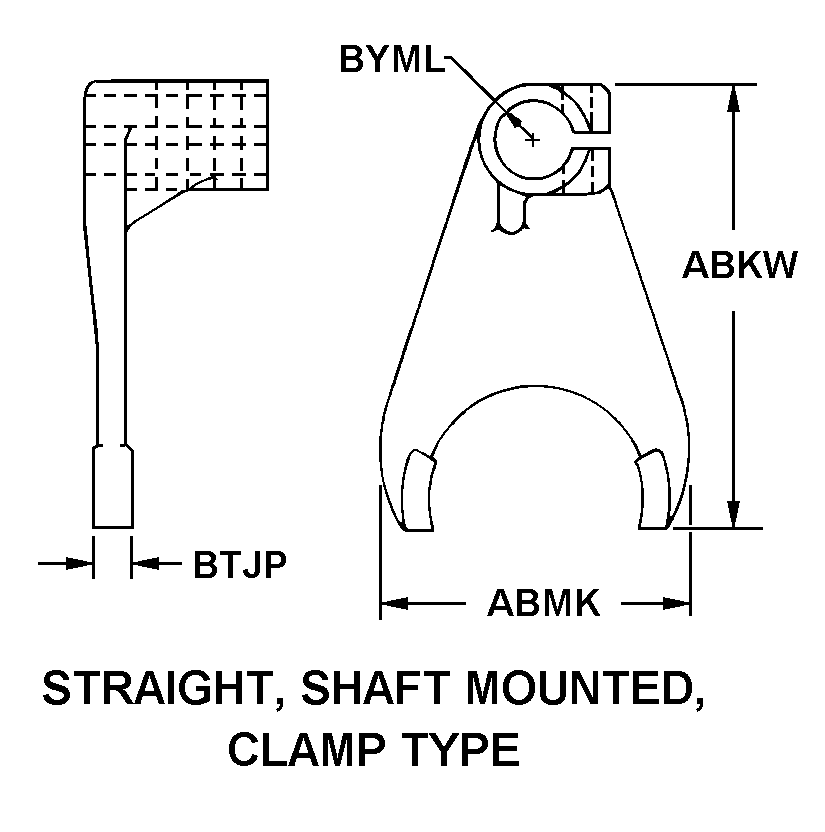

STRAIGHT, SHAFT MOUNTED, CLAMP TYPE
Cross Reference | NSN 2520-00-179-9946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2B1866 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 2520-00-179-9946
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | A66$JGAAISI/SAE 1040 2ND MATERIAL RESPONSE |
| STYLE DESIGNATOR | STRAIGHT, SHAFT MOUNTED, CLAMP TYPE |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| OVERALL WIDTH | 3.124 INCHES NOMINAL |
| FORK END WIDTH | 0.302 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.745 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED PAD |
| SPECIAL FEATURES | NO MOUNTING SLOT; BORE LENGTH: 1.625 IN. NOMINAL; FORK WIDTH: 1.890 IN. NOMINAL; MATERIAL HARDNESS RATING: 54.0 NOMINAL ROCKWELL C; SECURING HOLE SIZE: 0.515; DISTANCE FROM MOUNTING FACILITY CENTERLINE TO ARCH CENTERLINE: 3.250 IN. NOMINAL; ARCH INSIDE RADIUS: 1.062 IN. NOMINAL |
