NSN 2520-00-128-2620

Part Details | VEHICULAR POSITIVE CLUTCH HALF

2520-00-128-2620 That portion of a CLUTCH,POSITIVE which transmits or receives motion or power by engagement with the mating member.

Alternate Parts: 2864E, 2864E, 2520-00-128-2620, 00-128-2620, 2520001282620, 001282620

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
25JAN 01, 196100-128-262052084 ( CLUTCH HALF, POSITIVE, VEHICULAR )
REFERENCE DRAWINGS & PICTURES

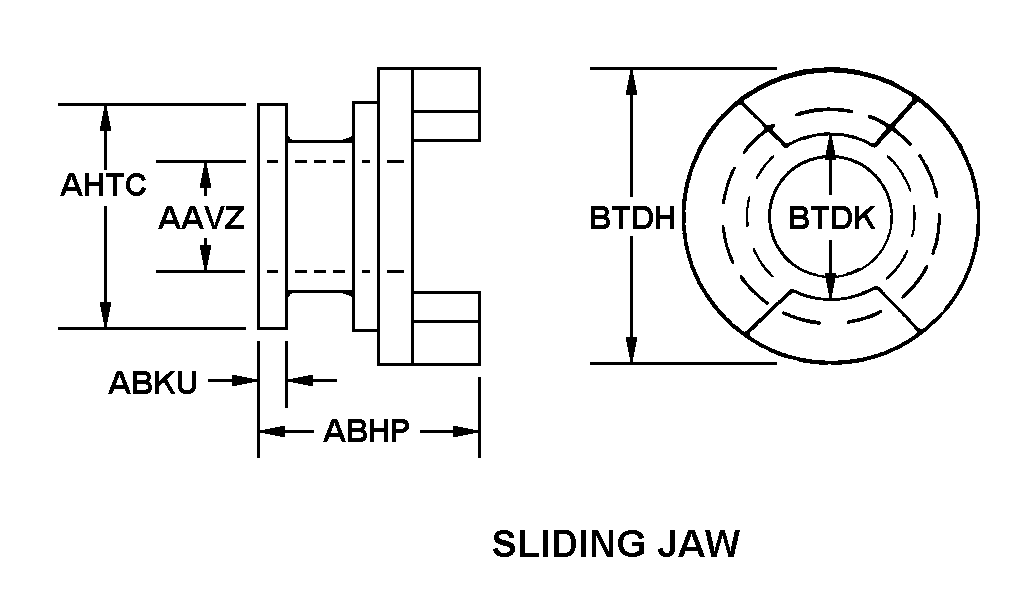

SLIDING JAW

CLUTCH HALF,POSITIV | 2520-00-128-2620, 001282620
Cross Reference | NSN 2520-00-128-2620
Part Number Cage Code Manufacturer
2864E05643BARBER-GREENE CO
2864E0MKW7MINNPAR, LLCDBA MINNPAR
Technical Data | NSN 2520-00-128-2620
Characteristic Specifications
STYLE DESIGNATOR SLIDING JAW
GROOVE DIAMETER3.750 INCHES NOMINAL
OVERALL LENGTH2.375 INCHES NOMINAL
FLANGE THICKNESS0.385 INCHES NOMINAL
JAW CIRCLE OUTSIDE DIAMETER4.585 INCHES NOMINAL
JAW CIRCLE INSIDE DIAMETER3.085 INCHES NOMINAL
BORE SHAPE STRAIGHT
BORE DIAMETER1.685 INCHES NOMINAL
FEATURES PROVIDED KEYWAY
