NSN 2520-00-084-4585
Part Details | PROPELLER SHAFT DUST CAP
2520-00-084-4585 A cap designed to exclude dirt from shaft spline, and retain lubricant.
Alternate Parts: A75228, A7522-8, 1090667, 10906677, 2520-00-084-4585, 00-084-4585, 2520000844585, 000844585
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-084-4585 | 10960 ( CAP, DUST, PROPELLER SHAFT ) |

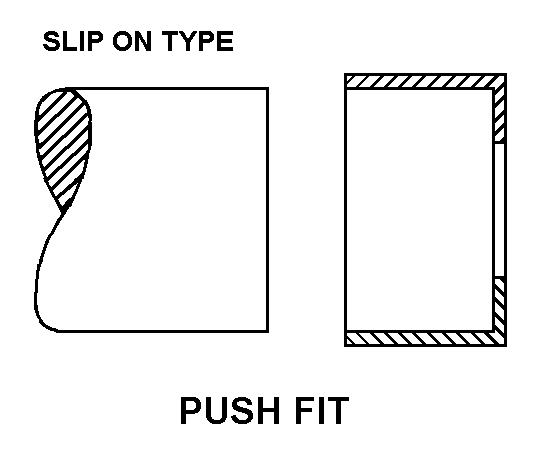

REFERENCE DRAWINGS & PICTURES
PUSH FIT
Cross Reference | NSN 2520-00-084-4585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A7522-8 | 52793 | SAGINAW PRODUCTS CORPORATIONDBA CIGNYS |
| 1090667 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 10906677 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2520-00-084-4585
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | PUSH FIT |
| OUTSIDE DIAMETER | 1.661 INCHES MINIMUM AND 1.671 INCHES MAXIMUM |
| INSIDE DIAMETER | 1.625 INCHES MINIMUM AND 1.635 INCHES MAXIMUM |
| OVERALL WIDTH | 0.375 INCHES NOMINAL |
| SPECIAL FEATURES | GRIPPING SURFACE CONDITION-PLAIN;MATL THK 0.036 IN. |
