Part Details | BELL CRANK
1670-01-098-1450 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).
Alternate Parts: 16L5227, 16L522-7, 1670-01-098-1450, 01-098-1450, 1670010981450, 010981450
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JUL 26, 1980 | 01-098-1450 | 22321 ( BELL CRANK ) |
REFERENCE DRAWINGS & PICTURES

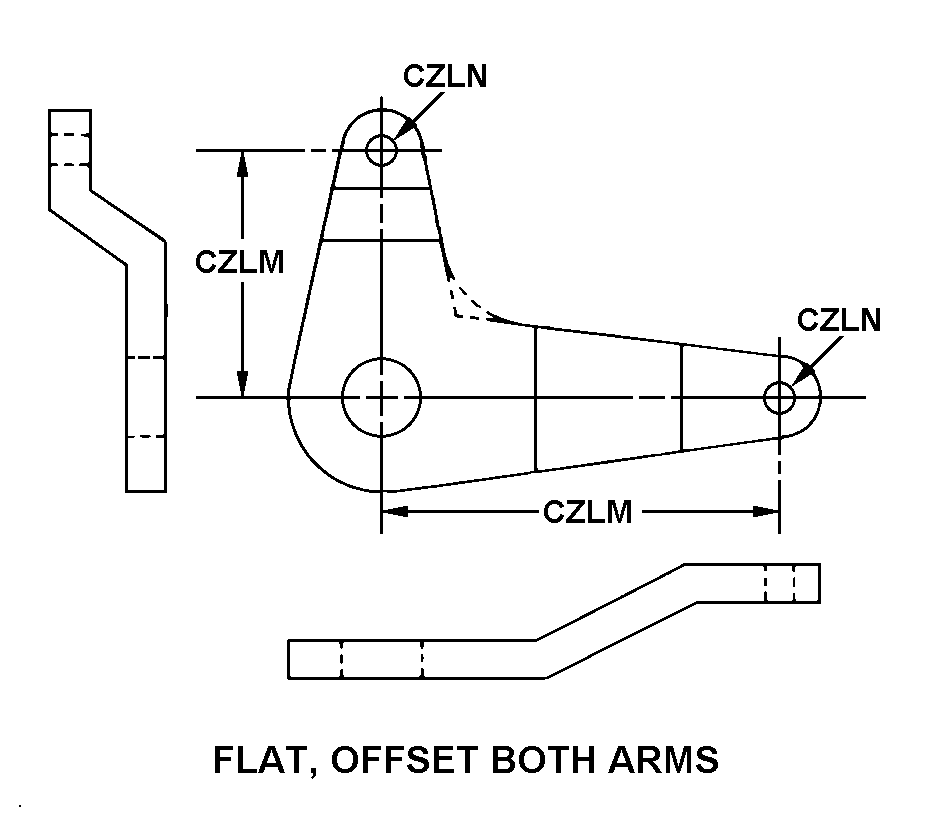

FLAT, OFFSET BOTH ARMS
Cross Reference | NSN 1670-01-098-1450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16L522-7 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 1670-01-098-1450
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZE |
| STYLE DESIGNATOR | FLAT, OFFSET BOTH ARMS |
| BORE LENGTH | 0.190 INCHES NOMINAL |
| BORE DIAMETER | 0.261 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| SPECIAL FEATURES | ARMS OFFSET TO RIGHT |
