NSN 1670-00-571-4287
Part Details | TIE DOWN ADAPTER
1670-00-571-4287 A plate type adapter designed to be attached to a structural component to provide the necessary accommodations to secure cargo. It may contain a ring or other attachment fitting. (Excludes ADAPTER, TIE DOWN, AIRCRAFT FLOOR and ADAPTER, TIE DOWN, AIRCRAFT)
Alternate Parts: 3556741, 355674-1, 1670-00-571-4287, 00-571-4287, 1670005714287, 005714287
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JAN 01, 1960 | 00-571-4287 | 67450 ( ADAPTER, TIE DOWN ) |
REFERENCE DRAWINGS & PICTURES

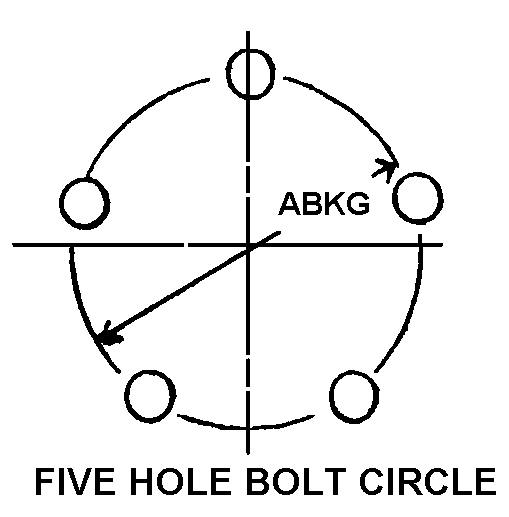

FIVE HOLE BOLT CIRCLE
Cross Reference | NSN 1670-00-571-4287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 355674-1 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 1670-00-571-4287
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MOUNTING HOLE ARRANGEMENT STYLE | FIVE HOLE BOLT CIRCLE |
| OVERALL HEIGHT | 2.160 INCHES NOMINAL |
| OVERALL DIAMETER | 4.800 INCHES NOMINAL |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE DIAMETER | 0.255 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 3.900 INCHES NOMINAL |
