NSN 1640-01-546-5879

Part Details | AVIATION RETAINING CLIP

1640-01-546-5879 An aircraft control cable system item consisting of a clip formed from resilient wire stock into a shape resembling a "U", with each of the prongs having one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action when fitted into the groove(s) or notch(es) of the item upon which a part, shaft, pin or like item is to be held in place.

Alternate Parts: 31710032, 3171003-2, 1640-01-546-5879, 01-546-5879, 1640015465879, 015465879

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
16DEC 21, 200601-546-587966956 ( CLIP, RETAINING, AVIATION )

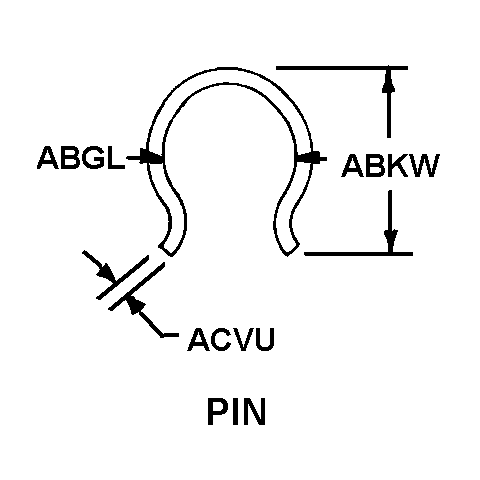

REFERENCE DRAWINGS & PICTURES

PIN

CLIP,RETAINING,AVIA | 1640-01-546-5879, 015465879
Cross Reference | NSN 1640-01-546-5879
Part Number Cage Code Manufacturer
3171003-259364HONEYWELL INTERNATIONAL INC.DBA HONEYWELL
Technical Data | NSN 1640-01-546-5879
Characteristic Specifications
MATERIAL STEEL
MATERIAL HARDNESS RATING38.0 ROCKWELL C NOMINAL
CASEHARDENING INDICATOR NOT CASEHARDENED
STYLE DESIGNATOR PIN
WIDTH0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM
OVERALL HEIGHT0.480 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
STOCK DIAMETER0.040 INCHES NOMINAL
