NSN 1630-00-218-8572
Part Details | GREASE CAP
1630-00-218-8572 A cap, usually of metal, designed to retain lubricant and excludes foreign matter from bearings. It is normally used as an end closure on items designed to rotate on a shaft,such as a wheel hub, or fit into a housing at the end of a rotating shaft, or the like. Do not use if a more specific name applies. For items mounted by bolt holes, see COVER, ACCESS.
Alternate Parts: 881411, 88141-1, 1630-00-218-8572, 00-218-8572, 1630002188572, 002188572
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JAN 01, 1963 | 00-218-8572 | 22874 ( CAP, GREASE ) |

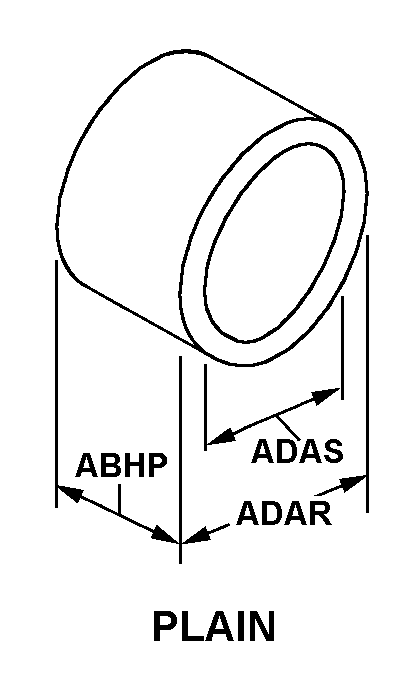

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 1630-00-218-8572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 88141-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 1630-00-218-8572
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | PLAIN |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 3.177 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 3.103 INCHES NOMINAL |
| SPECIAL FEATURES | C/BORE FEATURE-NOT INCL.;GROOVED FACE-NOT PROVIDED;ANTISTATIC SPRING-NOT INCL.;SURFACE TREAT.-PAINTED |
| END ITEM IDENTIFICATION | WHEEL,LANDING GEAR,ACFT |
