NSN 1630-00-123-3777
Part Details | GREASE CAP
1630-00-123-3777 A cap, usually of metal, designed to retain lubricant and excludes foreign matter from bearings. It is normally used as an end closure on items designed to rotate on a shaft,such as a wheel hub, or fit into a housing at the end of a rotating shaft, or the like. Do not use if a more specific name applies. For items mounted by bolt holes, see COVER, ACCESS.
Alternate Parts: 216A384, 216A384, 1630-00-123-3777, 00-123-3777, 1630001233777, 001233777
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | NOV 18, 1968 | 00-123-3777 | 22874 ( CAP, GREASE ) |
REFERENCE DRAWINGS & PICTURES

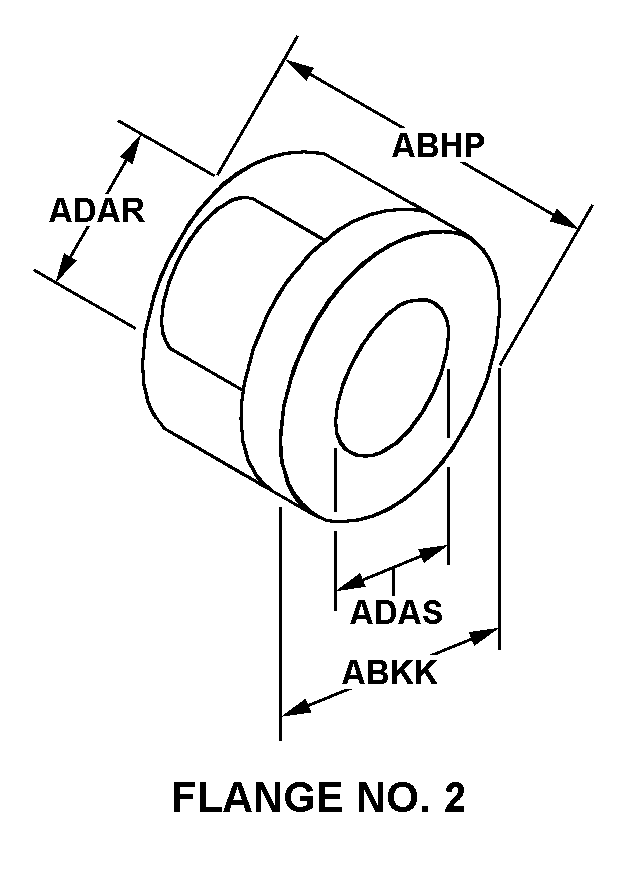

FLANGE NO. 2
Cross Reference | NSN 1630-00-123-3777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 216A384 | 73808 | CONTINENTAL TIRE THE AMERICAS, LLCDBA CONTINENTAL TIRES |
| 216A384 | 23233 | JAY-EM AEROSPACE CORPORATION |
Technical Data | NSN 1630-00-123-3777
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | FLANGE NO. 2 |
| OVERALL LENGTH | 0.843 INCHES NOMINAL |
| FLANGE DIAMETER | 2.671 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.291 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.177 INCHES NOMINAL |
| SPECIAL FEATURES | C/BORE FEATURE-NOT INCL.;GROOVED FACE-NOT PROVIDED;ANTISTATIC SPRING-NOT INCL.;SURFACE TREAT.-LACQUERED |
| END ITEM IDENTIFICATION | WHEEL,LANDING GEAR,ACFT |
