NSN 5935-00-057-4282
Part Details | ELECTRICAL CONNECTOR SHELL
5935-00-057-4282 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Alternate Parts: S449034, S449-034, GH805R1, 5935-00-057-4282, 00-057-4282, 5935000574282, 000574282
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 24, 1968 | 00-057-4282 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
REFERENCE DRAWINGS & PICTURES

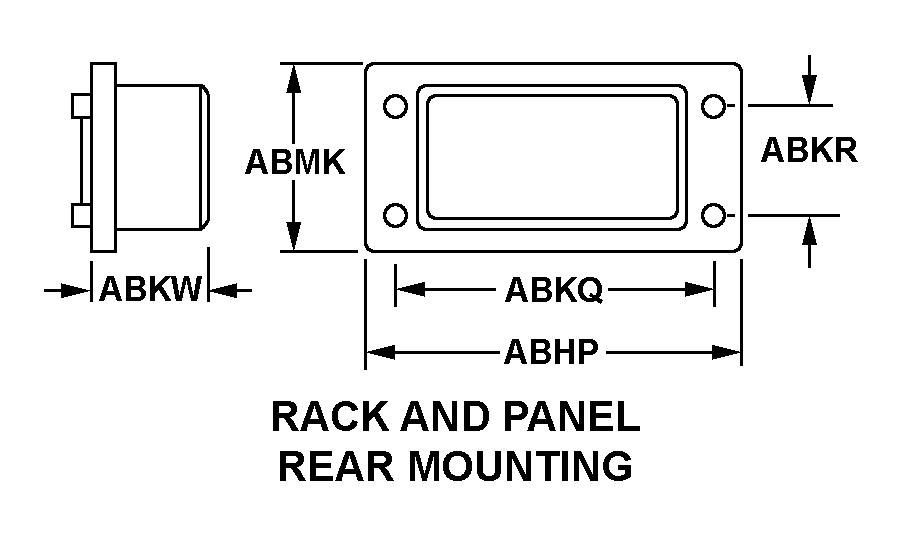

RACK AND PANEL REAR MOUNTING
Cross Reference | NSN 5935-00-057-4282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S449-034 | 07418 | JOSLYN SUNBANK COMPANY, LLC |
| GH805R1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 5935-00-057-4282
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RACK AND PANEL REAR MOUNTING |
| OVERALL LENGTH | 3.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| SIZE DESIGNATION | 34 |
