NSN 5935-00-052-2810
Part Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-052-2810 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Alternate Parts: 690057723, 69005-7723, 2205897G001, 2205897, 5935-00-052-2810, 00-052-2810, 5935000522810, 000522810
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 16, 1967 | 00-052-2810 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
REFERENCE DRAWINGS & PICTURES

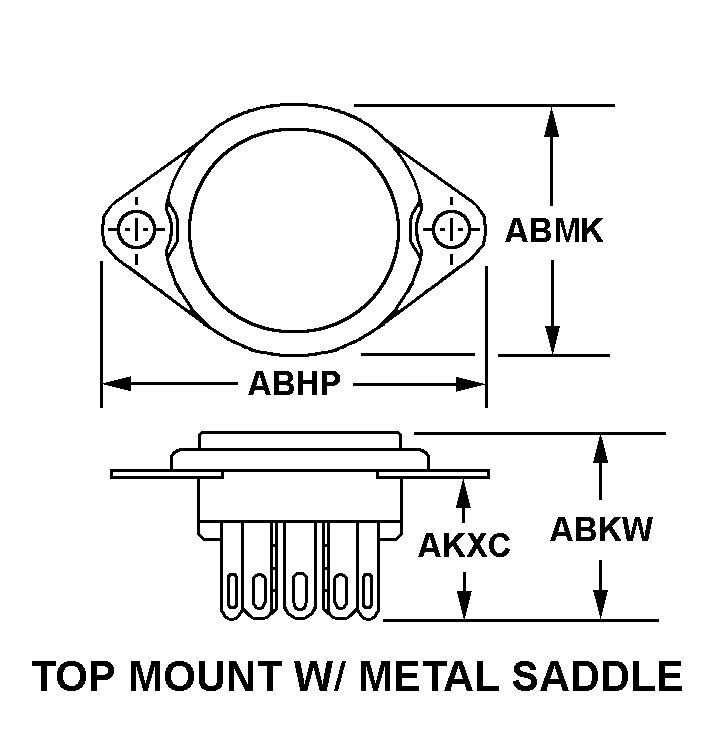

TOP MOUNT W/METAL SADDLE
ROUND, W/TWO MOUNTING HOLES

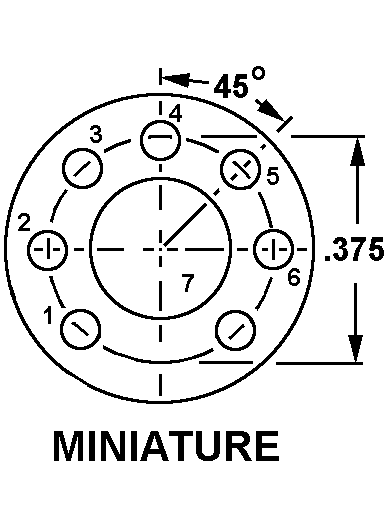

MINIATURE
Cross Reference | NSN 5935-00-052-2810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69005-7723 | 28499 | CHEMLEC PRODUCTS INC |
| 2205897G001 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
| 2205897 | 28527 | HARRIS CORPORATIONDBA ELECTRONIC SYSTEMS, INTEGRATED |
Technical Data | NSN 5935-00-052-2810
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | MINIATURE |
| ACCOMMODATED CONTACT QUANTITY | 7 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | G0000 ANY ACCEPTABLE |
| BODY STYLE | TOP MOUNT W/METAL SADDLE |
| OVERALL LENGTH | 1.094 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES MINIMUM AND 0.561 INCHES MAXIMUM |
| OVERALL WIDTH | 0.797 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| TERMINAL TYPE AND QUANTITY | 7 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | SADDLE |
| MOUNTING HOLE STYLE | ROUND, W/TWO MOUNTING HOLES |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.875 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| FEATURES PROVIDED | CENTER SHIELD |
| SPECIFIC EQUIPMENT ACCOMMODATED | ELECTRON TUBE |
| FABRICATION METHOD | MOLDED |
| BASE SHIELD MATERIAL | STEEL |
| BASE SHIELD SURFACE TREATMENT | CADMIUM |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE SILVER |
